Sala limpia modular

Vista general del sistema Una sala limpia modular es un sistema de recinto avanzado y escalable diseñado para ofrecer un control de contaminación sin compromisos para industrias sensibles. Al alejarse de la construcción tradicional, este sistema está diseñado como un sistema de sala limpia plug-and-play altamente eficiente que reduce drásticamente el tiempo de instalación y el gasto de capital (CAPEX).

Product Origin:
China
Shipping Port:
Shanghai
Lead Time:
25

Detalles del producto

Modular Clean Room & Prefabricated Laboratory Systems

Factory-prefabricated modular clean room systems for pharmaceutical, semiconductor, medical-device and food production. ISO 5–8 environments designed for rapid installation, reuse and expansion, supplied to 40+ countries.

Get a Free Quote & Layout → Chat on WhatsApp Reply ≤ 24 h · Free layout & quotation

What Is a Modular Clean Room?

A scalable enclosure combining cleanroom wall panels, an FFU ceiling grid and HVAC/HEPA filtration to control cleanliness, temperature, humidity and pressure.

Our cleanroom panel manufacturer team uses BIM and factory acceptance testing for integrated laboratory modules. Explore modular cleanrooms for research facilities and our 2026 cleanroom cost guide.

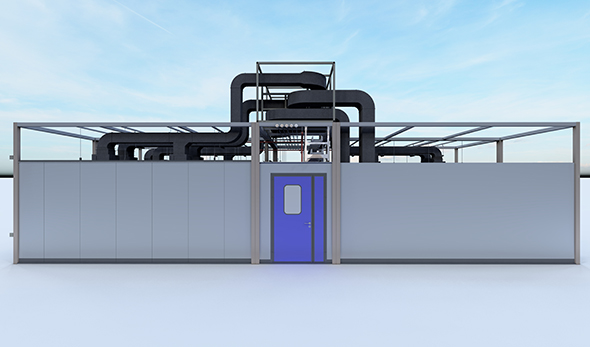

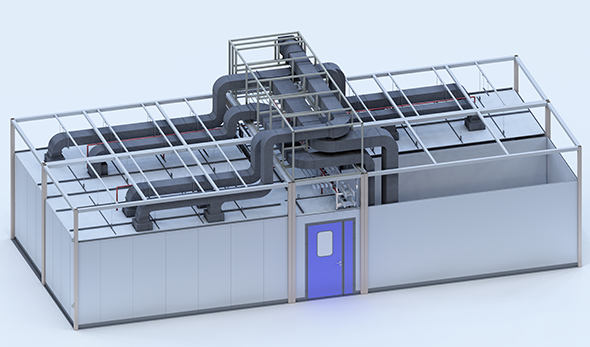

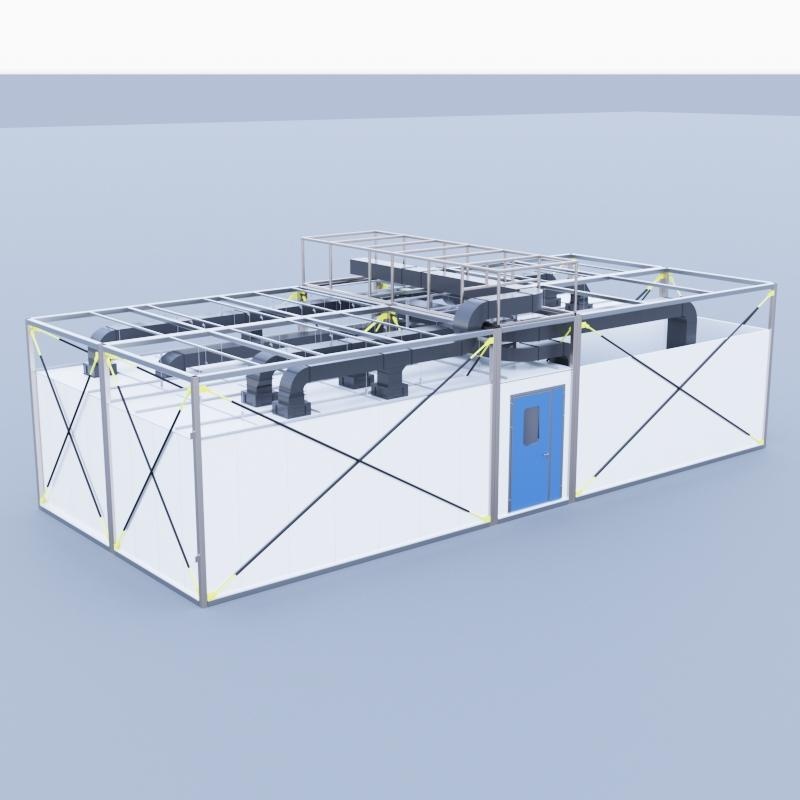

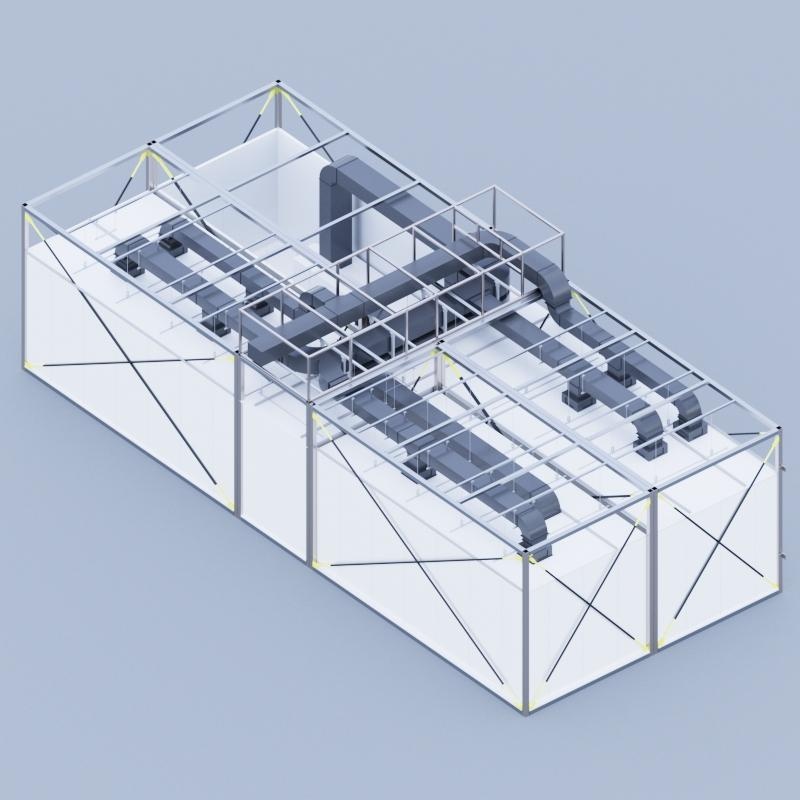

 Prefabricated modular cleanroom with cleanroom wall panelsModular clean room ceiling and FFU gridSala limpia modularSala limpia modularSala limpia modularSala limpia modular





Wall Panel Cross-Section


① Facing — pre-coated steel 0.5 mm / SS 304-316 / aluminum / HPL
Insulating core 50–150 mm
② Core — rock wool / PU / PIR / EPS / honeycomb / glass-magnesium

③ Facing — heat-pressure bonded
Cam-lock interlock joint Flush, gap-free surface Air-tight EPDM seal Coved / aluminum trim ready

Three Modular Platforms

Meixin Series
Compact wall, ceiling, HVAC and electrical components for fast installation inside buildings.
For indoor pharma & electronics

Ark Series
Factory-assembled modules with optional equipment, pipeline and gas integration.
For turnkey production
Meiji Series
Relocatable outdoor containers integrating HVAC, power and water. See container laboratory.
For outdoor & remote sites

Related builds: Prefabricated laboratory · Folding laboratory · Modular clean room video

Technical Specifications

Cleanroom Performance
ISO classification ISO 5 / 6 / 7 / 8 (Class 100 – 100,000)
Airflow design Laminar unidirectional / turbulent
HVAC integration FFU + AC + dehumidification; HEPA; pressure & humidity control
Controlled parameters Temperature · humidity · wind speed · pressure difference · lighting
Compliance GMP / ISO 14644
Wall & Ceiling Panels
Sandwich cores rock wool · MgO rock wool · aluminum honeycomb · PU/PIR/EPS
Facing / surface Pre-coated/galvanized steel · SS 304/316 · aluminum · HPL; anti-static, dust-free
Thickness 50 mm standard; 75 / 100 mm available; width customizable
HPL panel 4 mm, 40+ resin-impregnated layers; chemical & scratch resistant; 10+ colors
FFU Ceiling Grid & Structure
Part Material Specification
FFU 55/70 grid Aluminum alloy 6063-T5 1200×1200 / 1200×600 mm · aluminum/white
Connection joint Zinc alloy 100×50×55 mm · rib-free, anti-wobble
Main grid / T High-strength cast aluminum Main 3600 mm · T-section 600/1200 mm
Fixings M6 / M10-1.5 M6×20 screws · M10-1.5×178 turnbuckles · 1200×1200 hangers
Doors, Windows & Equipment
Doors steel · HPL · aluminum-frame color steel · emergency escape · fire · electric sliding
Windows double-glazed · single-glazed tempered vision windows
Equipment air shower · pass box · laminar flow hood · interlock airlocks

Core Performance Data

Indicative 50 mm panel data; density and facing affect results. Final specifications are confirmed before production.

Core Thermal λ (W/m·K) Density (kg/m³) Fire class Sound Rw (dB)
Rock Wool ≈ 0.043 100–120 A1 up to ~30
PU ≈ 0.022 38–45 B1 / B2 ~25
PIR ≈ 0.022 38–45 B-s1,d0 ~25
EPS ≈ 0.038 14–20 B / lower ~22
Aluminum Honeycomb — light, rigid A up to ~30
Glass-Magnesium MgO ≈ 0.30 high strength A1 good
Fire resistance →
rock wool or glass-magnesium A1.
Insulation →
Choose PIR or PU: low λ; flame-retardant PIR.
Large-span ceiling →
Choose aluminum honeycomb: rigid, lightweight, walk-on capable.

In-House Digital Control System

Mobile controls monitor temperature, humidity, lighting, airflow and pressure, integrating FFU, air conditioning and dehumidification.

Modular vs Traditional Construction

Feature Wonclean Modular Traditional
Installation time Days Several months
Labor cost Low factory assembly High on-site labor
Reusability Dismantlable Demolition required
Quality control Factory tested Site-dependent
Future expansion Easy & relocatable Difficult

From Enquiry to Delivery

01
Share requirements
Drawings, ISO class, fire code.
02
Layout & quote ≤ 24h
Series, panels, HVAC and pricing.
03
Drawings & sample
Approved drawings + panel sample.
04
Production & install
Factory-tested, export packing, on-site support.

Technical Insights & FAQ

Can modular cleanrooms meet GMP requirements?

Designed for pharmaceutical applications to GMP and ISO 14644 requirements.

What ISO class can the modular cleanroom achieve?

ISO 5–8, depending on airflow and HVAC configuration.

How long does installation take?

Factory-prefabricated, tested modules enable installation in days.

Can process gases, pipelines and power be pre-installed?

Ark modules can integrate equipment, pipelines, gases and power before factory acceptance testing.

Which wall panel should I choose?

Choose rock wool/MgO for fire performance, PIR/PU for insulation, honeycomb for ceiling rigidity and HPL for chemical resistance.
